Compact VFFS Machines Series

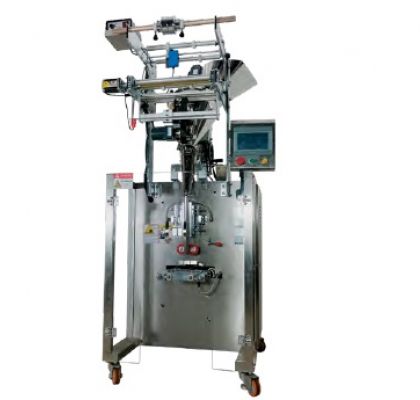

Powder Packaging Machine
Specifications:
Filling Volume Range: 1-100 g (3-100ml)
Bag Size: 30-180 mm (L) 20-140 mm (W)
Sealing Type: Three and Four Sides, Back Sealing
Max.Speed: 30 – 60 bags/min
Machine Dimensions: 850mm x 1100mm x 1900 mm(L x W x H)
Weight: 400 Kg
Power: 220V/50Hz/1,4 KW
Options
Coding Printer
Lower Cutter
Bag linking device

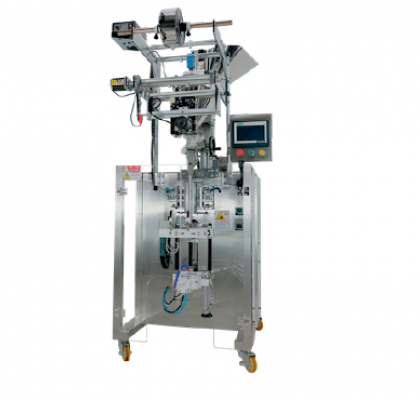

Round Corner Powder Packaging Machine
Specifications:
Filling Volume Range: 1-20 g (2.6-60ml)
Bag Size: 30-180 mm (L) 20-75 mm (W)
Sealing Type: Three Sides, Back Sealing
Max.Speed: 30 – 60 bags/min
Machine Dimensions: 850mm x 1100mm x 1900 mm(L x W x H)
Weight: 400 Kg
Power: 220V/50Hz/1,4 KW
Options: Coding Printer, Lower Cutter Radius Tool

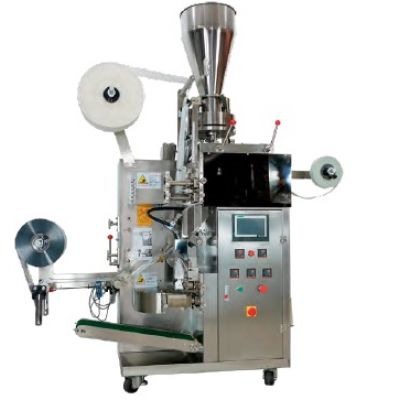

Tea Bag in Bag Packaging Machine
Specifications:
Filling Volume Range: 3-10 g (1.6-26 ml)
Bag Size: 50-70 mm (L) 45-80 mm (W)
Outer bag size: 80-120 mm (L) 75-95 mm (W)
Sealing Type: Three Sides
Max.Speed: 30 – 40 bags/min
Machine Dimensions: 1750mm x 740mm x 1950 mm(L x W x H)
Weight: 500 Kg
Power: 220V/50Hz/3,7 KW
Air: 0,4 m3/min
Options: Coding Printer
Tapping Mechanism

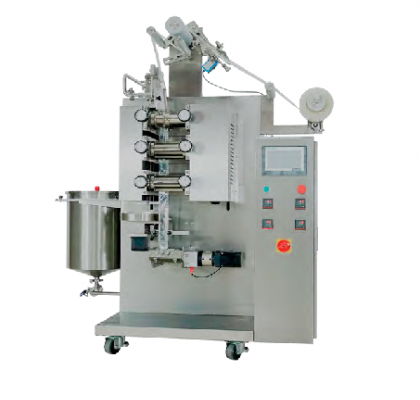

Continuous Sauce Packaging Machine
Specifications:
Filling Volume Range: 5-60 g
Bag Size: 60-160 mm (L) 35-100 mm (W)
Max.Speed: 20 – 90 bags/min
Machine Dimensions: 1900mm x 500mm x 1500 mm(L x W x H)
Weight: 450 Kg
Power: 220V/50Hz/4 KW
Options: Coding Printer

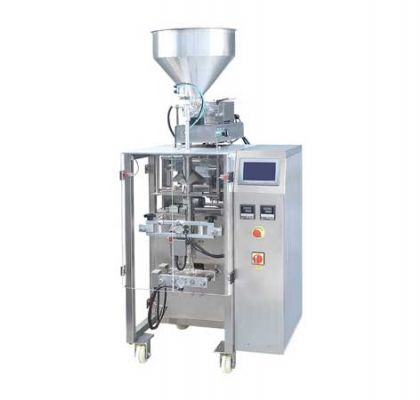

Paste Packaging Machine with Paste Pump
Specifications:
Filling Volume Range: According to the liquid or paste filling machine capacity
Small: 30-250ml +/- 0.5%, Medium: 100-1000ml +/-1%, Large: 1000-3000ml +/-1%
Capacity: Small 10-30 bpm, Medium: 8-25 bpm, Large: 6-20 bpm
Bag Size: 50-190 mm (L) 40-150 mm (W)
Film Width: 100-320mm
Machine Dimensions: 1120mm x 800mm x 1120 mm(L x W x H)
Weight: 300 Kg
Power: 220V/50Hz/2,2 KW

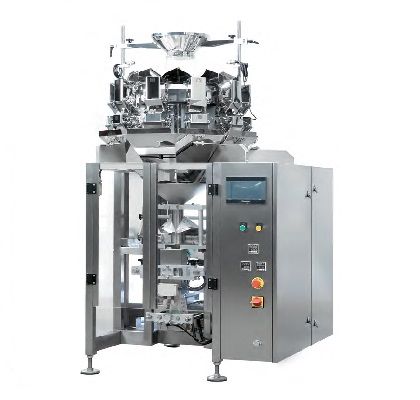

Compact VFFS packaging machine with multihead weigher
Specifications:
Filling Volume Range: 10-1000 g
Bag Size: 50-200 mm (L) 60-150 mm (W)

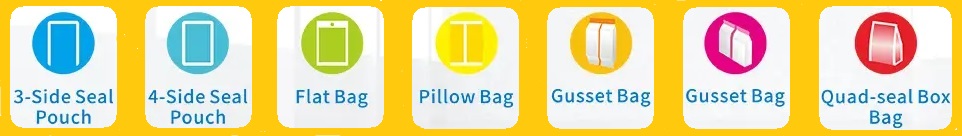

Bag Type: Pillow bag, gusseted bag, punching bag, vacuum bag
Max.Speed: 10 – 65 bags/min
Machine Dimensions: 1150mm x 800mm x 2700 mm(L x W x H)
Power: 220V/50Hz/3,2 KW
Options: Coding Printer
Full VFFS machine sets
VFFS Quadro packaging machine with multihead weigher
Whole Set:
- 10-head computer combination weigher
- Stainless steel Z-type material conveyor
- Finished product conveyor
- Stainless steel supporting platform (optional carbon steel material)
Specifications:
Filling Volume Range: 10-1000 g
Bag Size: Front width: 70-200mm, Side width: 30-100mm, Edge sealing width: 5-7mm, Bag length: 100-350mm
Max.Film Range: 220mm-520mm
Bag Type: Packing bags with a stronger three-dimensional sense, high-grade bags, beautiful and popular, especially highlighting the display effect
Max.Speed: 5-50 bags/min

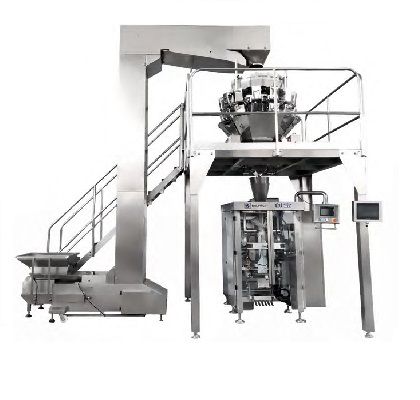

High Speed VFFS packaging machine with multihead weigher
Whole Set:
- 14-head computer combination weigher
- Stainless steel Z-type material conveyor
- Finished product conveyor
- Stainless steel supporting platform (optional carbon steel material)
Specifications:
Filling Volume Range: 10-2000 g
Bag Size: Front width: 50-250mm, Bag length: 50-350mm
Max.Film Range: 120mm-520mm
Bag Type: Pillow bag (Optional: gusseted bag, strip bag, bags with euroslot)
Max.Speed: 120 bags/min

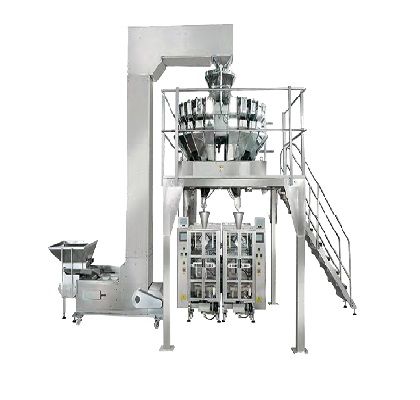

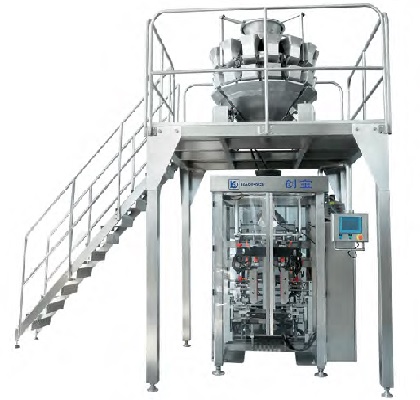

Double bagger VFFS packaging machine with multihead weigher
Whole Set:
- 24-head computer combination weigher
- Stainless steel Z-type material conveyor
- Finished product conveyor
- Stainless steel supporting platform (optional carbon steel material)
Specifications:
Filling Range: <= 2.4 L
Bag Size: Front width: 50-330mm, Bag length: 50-200mm
Max.Film Range: 140mm-420mm
Bag Type: Pillow bag (Optional: gusseted bag, strip bag, bags with euroslot)
Max.Speed: 140 bags/min
