Multihead Weighers

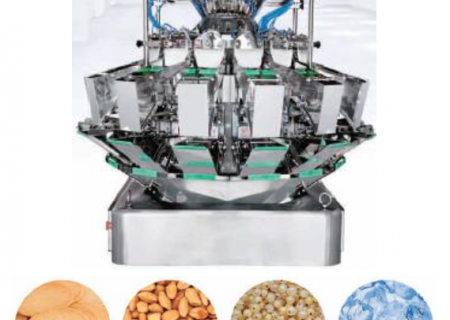

Breakage-Proof Multihead Weigher
This Breakage-Proof Multihead Weigher adopts an inclined weighing bucket, which can shorten the falling height in advance and protect the integrity of weighing materials. It is suitable for weighing fragile materials such as fresh fruits, ice cubes, biscuits, and peanuts. The Multi-Head Scale Breakage-Proof Multihead Weigher uses a hopper with a capacity of 3 liters, and the maximum weighing speed reaches 60 packs per minute.
Features:
Model: JW-A14
14 Heads
Weighing Range: 10-1000g
Max Speed: 60 PM
100 Program Capacity
Hopper Volume: 3L
10.1” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 1400W, 6A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

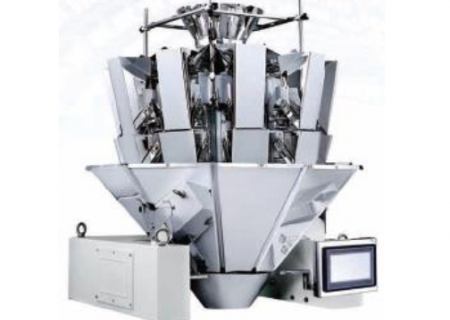

Carbon Steel Multihead Weigher
The Carbon Steel Multihead Weigher uses a thicker iron chassis and integral iron center, which enhances the strength of the machine and makes the weighing time more stable. It is suitable for materials requiring a drying production environment, such as candy, melon seeds, nuts, raisins, and so on. The maximum weighing speed of the combined weighing scale of 10 carbon steel multi-head weigher can reach 65 bags per minute, with moderate price, high performance-price ratio, and economical benefit.
Features:
Model: JW-A10/JW-A14
10/14 Heads
Weighing Range: 10-1500g
Max Speed: 65 PM
100 Program Capacity
Hopper Volume: 1.6/2.5L
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 1000W, 10A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

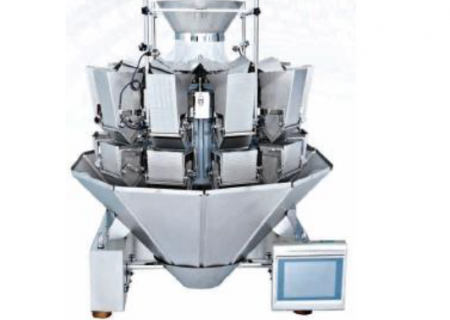

Frozen Food Multihead Weigher
The frozen combination scale adopts IP65-grade waterproof chassis, which effectively prevents the damage to electrical components inside the chassis. It is suitable for quantitative weighing of various frozen materials such as frozen dumplings, shrimps, fish, fruit, and so on. The maximum weighing speed of the 10 head frozen multihead weigher can reach 65 packs per minute, and the cost-effective ratio is high.
Features:
Model: JW-A10
Heads: 10
Weighing Range: 10-1000g
Max Speed: 65 PM
100 Program Capacity
Hopper Volume: 1.6/2.5L
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 1000W, 10A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

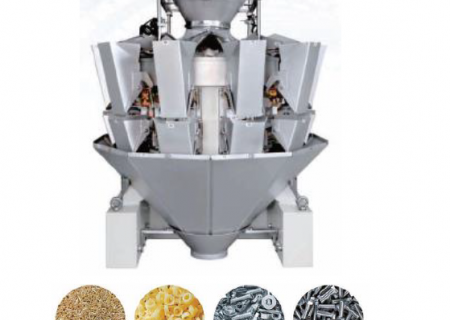

Hardware Multihead Weigher
The Hardware Combination Scale adopts a special sensor, which has super impact resistance. It is suitable for weighing small parts such as hardware, plastics, and so on. The hardware combination weighing scale adds noise-proof PVC device in the part of the contacting material, which effectively prevents the noise caused by a collision between the material and the combination weighing scale during operation.
Features:
Model: JW-A10
Heads 10
Weighing Range: 10-2000g
Max Speed: 65 PM
100 Program Capacity
Hopper Volume: 1.6L
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 1000W, 10A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

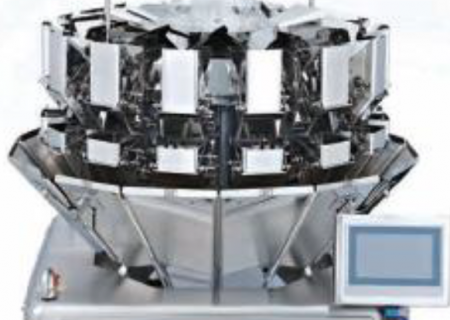

Mini Multihead Weigher
The Mini Multihead Weigher is a high-precision weighing machine. It adopts an ultra-small 0.5L hopper and ultra-low vibration design, and it runs more smoothly. It is suitable for high-precision quantitative weighing of medicine tablets, tea, coffee beans, seeds, monosodium glutamate, and other small particles.
Model: JW-A10
Heads 10
Weighing Range: 2-200g
Max Speed: 60 PM
100 Program Capacity
Hopper Volume: 0.5L
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 900W, 8A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer

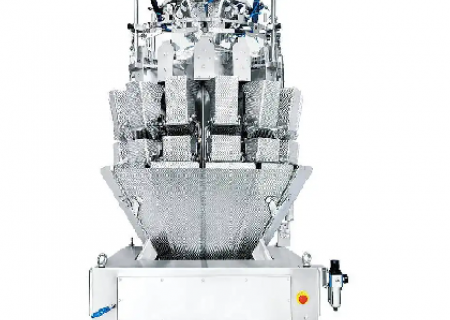

Noodle Weigher Multihead Weigher
The Noodle Combination Multihead Weigher uses pattern board material to avoid material sticking hopper. It is suitable for weighing soft long strip materials such as soft noodles, rice noodles, bean sprouts, etc.. Noodle scales are equipped with drying dewatering devices and waterproof chassis of IP65 grade, which effectively prevents damage to electrical components in the chassis.
Model: JW-A14
Heads 14
Weighing Range: 100-500g
Max Speed: 40 PM
100 Program Capacity
Hopper Volume: 2.5L
10.1” Touch Screen
Step Motor Driving System
S.S. Frame
Standard Flat Linear Pan
220V, 50/60Hz, 1800W, 8A
Gross Weight 400Kg
Options:
Timing Hopper
Reject Device
Printer

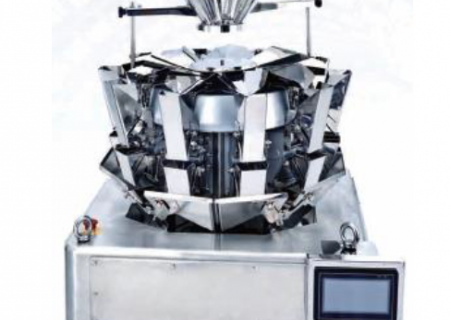

Super Mini Multihead Weigher
The Super Mini Multihead Weigher has a special sensor with high precision and high standard. Its resolution is raised to 2 decimal digits. An ultra-small 0.3L hopper is used. It is suitable for materials with very high precision of symmetrical weight, such as. MSG, chocolate beans, herbal pieces, tea, coffee beans, seeds, and other small particles were weighed quantitatively.
Model: JW-A10
Heads 10
Weighing Range: 1-60g
Max Speed: 60 PM
100 Program Capacity
Hopper Volume: 0.3L
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 900W, 8A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

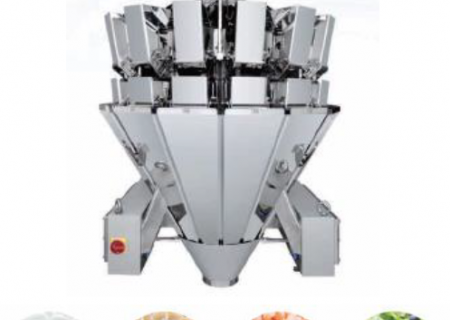

Waterproof Multihead Weigher
The Waterproof Multihead Weigher features an IP65 waterproof case and automatic drainage system. The vibrator adopts a compact waterproof rubber sleeve which can be washed directly with a high-pressure water gun. It has a drying/dewatering device to effectively prevent moisture damage. It is suitable for frozen salad, frozen foods, cooked foods, etc.
Model: JW-A10
Heads 10
High Precision Load Cell
Weighing Range: 10-1000g
Max Speed: 65 PM
100 Program Capacity
Hopper Volume: 1.6/2.5L
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 1000W, 10A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

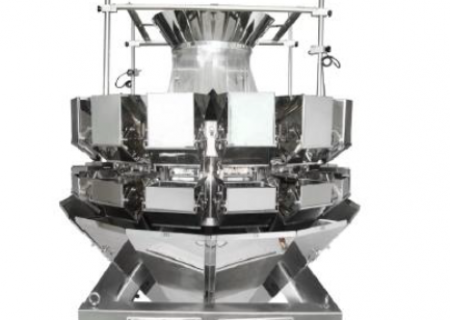

14-Head Weigh Scale
This scale is not only suitable for weighing a large-target weight and a large-capacity quantitative but also small-weight granules such as medicine tablets, tea, coffee beans, chocolate beans, currants, and other snack food, hardware, and plastic pieces.
Features:
Model: JW-AM14
14 Heads
Weighing Range: 100-3000g
Max Speed: 80 PM
100 Program Capacity
Hopper Volume: 5L (Optional 7.5L)
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 1500W, 12A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

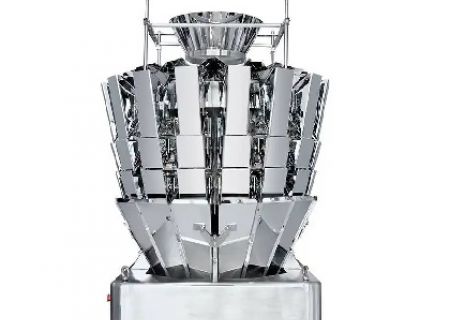

Three layers 16 Head MultiHead Weigher with New Memory Bucket
Three layers 16 heads multi-weigher packing machine can be used for weighing a single material or two mixed materials. The memory hopper is added to increase the probability of weighing combination and improve the accuracy of weighing materials. It is made of a 304 stainless steel frame and food class buckets. The 16 heads Kenwei multihead weigher is suitable for melon seeds, peanuts, nuts, almonds, raisins, candies, pistachios, potato chips, shrimp cracks, dumplings, meatballs, etc.
Features:
Model: JW-A16
16 Heads
Weighing Range: 10-1000g
Max Speed: 120x2P/M
100 Program Capacity
Hopper Volume: 1.6L
10.1” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 2300W, 11A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

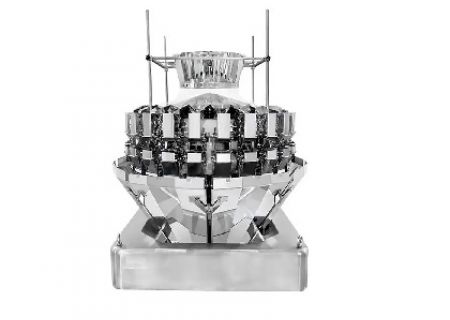

24 Heads Multihead Weigher With Memory Bucket
The three-layer 24-head multihead weigher has a new memory bucket, which can realize temporary storage of weighing materials, increase combination probability, and effectively improve the accuracy of the combination weighing scale. The single machine with a separate main vibration disc can realize up to six kinds of mixture formula application, and the maximum weighing speed can achieve 240 bags/minute, effectively improving economic benefits
Features:
Model: JW-A24
24 Heads
Weighing Range: 12-1000g
Max Speed: 60x4P/M
100 Program Capacity
Hopper Volume: 0.5L
10.1” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 2800W, 13A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand

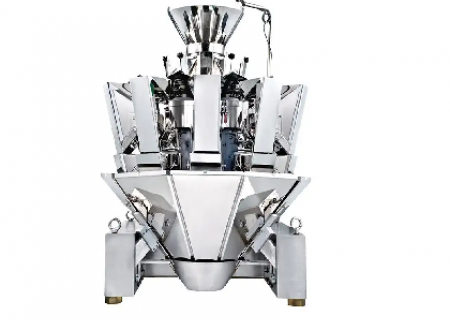

Leak Proof Multi Head Weigher for Small particle&powder
The leak proof multi head weigher adopts a special deep U-shaped vibrating plate to avoid material leaking to both sides of the vibrating plate when weighing. It is suitable for the quantitative weighing of various micro-particles such as rice, chicken essence, monosodium glutamate and other materials. The newly added multi-angle hopper effectively distributes materials to the vibrating plates of various lines, reduces production costs and improves economic benefits
Features:
Model: JW-A10 / JW-A14
10 Heads/14 Heads
Weighing Range: 20-1500g
Max Speed: 65-120P/M
100 Program Capacity
Hopper Volume: 1.6/2.5L
7” Touch Screen
Vibration Top Cone
S.S. Frame
Standard Flat Linear Pan
220V, 60Hz, 1000W/1500W, 10/12A
Options:
Dimple Plate
Timing Hopper
Reject Device
Printer
S.S. Stand
