Case Erectors

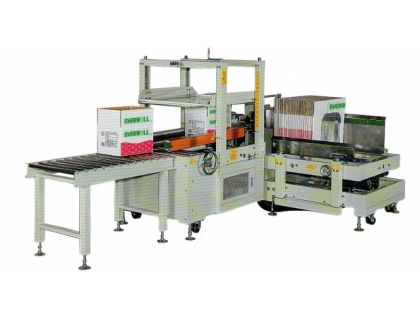

EC-801 Automatic Case Erector and Bottom Sealer
Once your volume of cases increases, it is time to stop hand erecting and taping your boxes. The EC-801 Automatic Case Erector and Bottom Sealer is designed for erecting cases, combined with a case bottom sealing function in a single feed. Its high efficiency performance permits the erection of 320-500 cases per hour. Erecting capacity is adjustable to meet various sizes of cases.
Features Include:
Up to 14 Cartons/minute
Compact Design Fits in an Area 89″ x 64″ (L shape)
PLC Controls
Easy Changeover
Alarm and Beacon System
220V, 3P, 8 amps
Air 7.1cfm @ 80 psi
Carton Handling Specifications:
- Length: 9 3/4″ – 22.4″
- Width: 6 5/8″ – 16″
- Height: 4″ – 20″

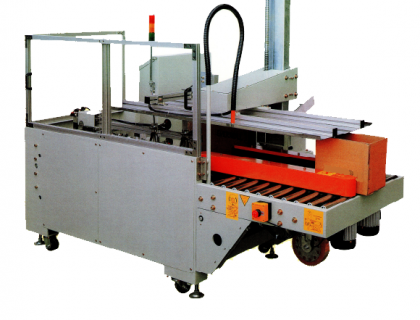

EC-801N Automatic Case Erector and Bottom Sealer
The EC-801N Automatic Case Erector and Bottom Sealer is designed for erecting cases, combined with case bottom sealing function in a single feed. Its high efficiency performance permits the erecting of 320-500 cases per hour. Erecting capacity is adjustable to meet various sizes of cases.
Features Include:
Up to 14 Cartons/minute
Compact Design Fits in an Area 89″ x 64″ (L shape)
PLC Controls
Easy Changeover
Alarm and Beacon System
220V, 3P, 8 amps
Air 7.1cfm @ 80 psi
Carton Handling Specifications:
- Length: 9 3/4″ – 22.4″
- Width: 6 5/8″ – 16″
- Height: 4″ – 20″

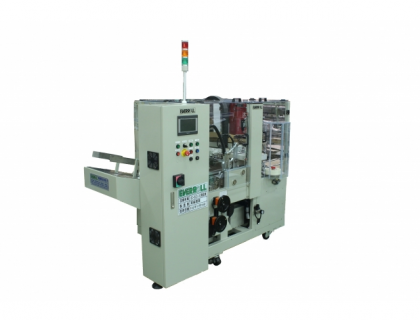

EC-803CS High speed carton erector
High-speed carton erector
Model： EC-803CS
Automatic carton/ box erecting & bottom sealing
Easy to adjust and change over quickly for various carton sizes
PLC controlled
Suitable usage products: carton/box
Type： Horizontal
Speed: up to 40 ctns/min (depends on model)
Model:
EC-803CS20(20ctns/min.)
EC-803CS30(30ctns/min.)
EC-803CS40(40ctns/min.)
Or we can make a machine according to the customer’s production line requirements.
Machine dimension: Depends on carton/box size
**Custom-made equipment, no standard specification. We build custom-made machines after meeting with the customer.
**Other carton size ranges can be produced on a case-by-case basis. Please contact us for more information.
Case Sealers

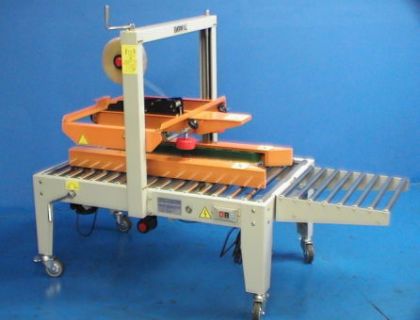

EC-701W Semi-Automatic Uniform Case Sealer
The EC-701W semi-automatic case sealer is by far our most popular and versatile uniform case sealer. Tapes the top and bottom of cases simultaneously. Side Belt Drive up to 50 lbs. Comes with casters for easy portability.
- Case Dimensions:
- Length: 6″ – any length
- Width: 4″ – 22″
- Height: 3″ – 20″
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Discharge Roller Table
Tool Kit
110 VAC, 60Hz, 1P
Options:
In-feed Roller Table
3” Width Taping Heads

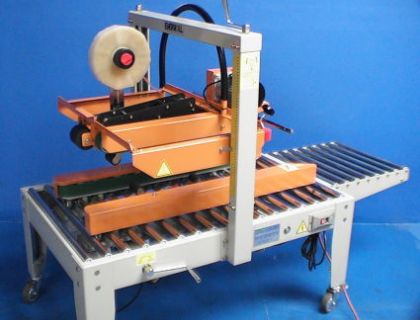

EC-702 Semi-Automatic Uniform Case Sealer
The EC-702 Top and Side Drive Semi-Automatic Case Sealer is ideal for handling extra-heavy loads or extra-light, tall loads.
- Case Handling Specifications:
- Length: 6″ minimum to any length
- Width: 4″ minimum to 20″ maximum
- Height: 4″ minimum to 20″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Discharge Roller Table
Tool Kit
110 VAC, 60Hz, 1P
Options:
In-feed Roller Table
3” Width Taping Heads

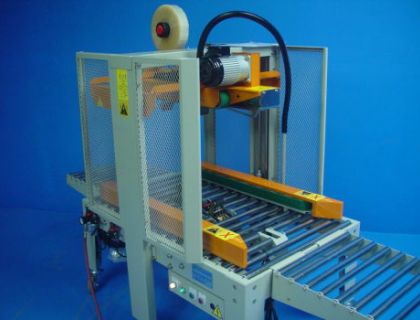

EC-702A Semi-Automatic Random Case Sealer
The EC-702A Auto Random Case Sealer is a cost-efficient top and bottom case sealing machine for runs of cases that are not the same size profile. The operator simply folds the top flaps of the corrugated carton and feeds it into the machine, and it will automatically adjust to the carton dimensions. The machine applies a single strip of tape to both the top and bottom of the carton simultaneously.
- Case Handling Specifications:
- Length: 6″ minimum to any length
- Width: 4″ minimum to 20″ maximum
- Height: 4″ minimum to 20″ maximum
- Throughput Speed: Depends on Case Size
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Discharge Roller Table
Tool Kit
110 VAC, 60Hz, 1P
Options:
In-feed Roller Table
3” Width Taping Heads

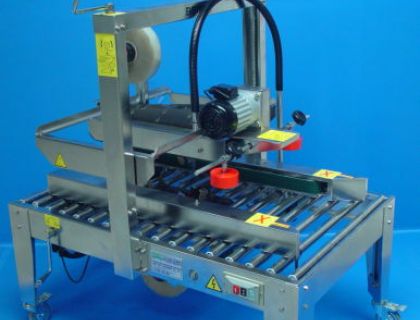

EC-702SS Stainless Steel Semi-Automatic Uniform Case Sealer
The EC-702SS Top and Side Drive Semi-automatic Case Sealer is great for extra heavy loads or extra light tall loads. Constructed from stainless steel, this case sealer is great for food operations.
- Case Handling Specifications:
- Length: 6″ minimum to any length
- Width: 4″ minimum to 20″ maximum
- Height: 4″ minimum to 20″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Stainless-Steel Construction
Casters (4)
Discharge Roller Table
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed Roller Table
3” Width Taping Heads

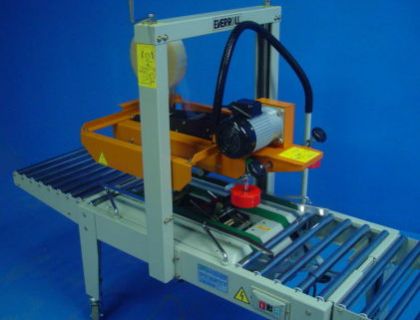

EC-703 Semi-Automatic Uniform Case Sealer
The EC-703 Semi-Automatic Case Sealer works better than others with coders because of the low-profile guide rails. It features top and bottom drive belts and is manually adjusted for carton size.
- Case Handling Specifications:
- Length: 6″ minimum to any length
- Width: 7″ minimum to 20″ maximum
- Height: 4″ minimum to 20″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Discharge Roller Table
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed Roller Table
3” Width Taping Heads

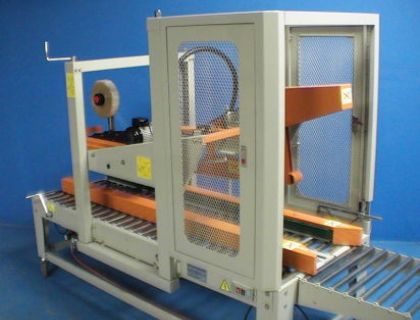

EC-705 Automatic Uniform Case Sealer
The EC-705 is an Auto Uniform Flap Folding and Case Sealing Machine, designed of heavy-duty steel construction which can meet the requirements of a variety of carton sealing profiles and high production rates. Automatic means that this uniform case sealer folds the major and minor flaps and then tapes the top and bottom of the box. It includes top and bottom side drive belts, auto top flap folding, manual adjustment for carton size, and three drive motors.
- Case Handling Specifications:
- Length: 6″ minimum to 25.6” maximum
- Width: 4″ minimum to 21.6″ maximum
- Height: 4″ minimum to 20″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed and Discharge Roller Tables
3” Width Taping Heads

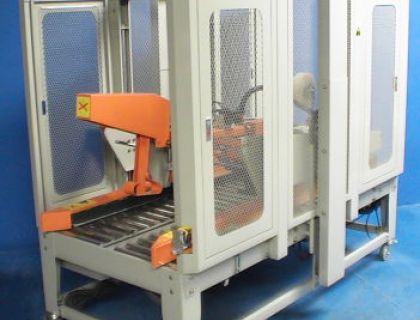

EC-705A Automatic Random Case Sealer
The EC-705A is an Automatic Random Flap Closing Case Sealing Machine.
Features Include:
- Auto Random Carton Size Adjustment
- Auto Top Flap Folding and Sealing
- Top & Side Drive Belts
- Three Drive Motors
- Equipped with Safety Net Cover (6PCS)
- Tape Missing Detection Device
- Tape Shortage Detection Device
- Random Top Squeezers (Optional)
- Suitable for Random Carton Sizes in Batches
Case Handling Specifications:
- Length: 6″ minimum to 26” maximum
- Width: 7″ minimum to 20″ maximum
- Height: 4″ minimum to 20″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed and Discharge Roller Tables
3” Width Taping Heads

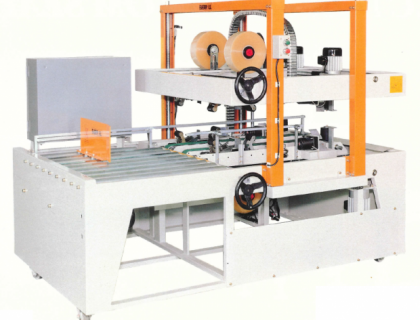

EC-706 Automatic Uniform Edge Sealer
The EC-706 Top Bottom Drive Automatic Edge Sealer for cases works in conjunction with the EC-705 automatic case sealer or the EC-702 semi-automatic case sealer. First, the case is sealed by the case sealer on the center line of the top and bottom of the case. Then the case is pushed off 90 degrees into the edge sealer where it completes the “H” seal top and bottom. If you need a system that runs a straight line, we can integrate a 90-degree turntable and eliminate the shuttle.
- Case Handling Specifications:
- Length: 11” minimum to 23.5” maximum (custom sizes available)
- Width: 9.8″ minimum to 23.5″ maximum
- Height: 7.8″ minimum to 23.6″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed and Discharge Roller Tables
3” Width Taping Heads

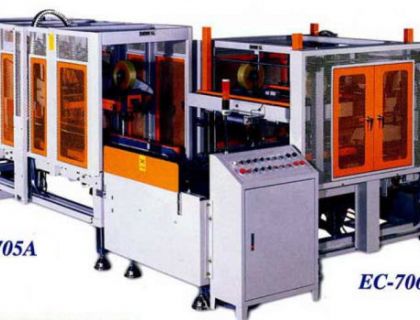

EC-706A with EC-705A
The EC-706A Top Bottom Drive Automatic Edge Sealer for cases works in conjunction with the EC-705 Automatic Case Sealer (or the EC-702 semi-automatic case sealer). First, the case is sealed by the case sealer on the center line of the top and bottom of the case. Then the case is pushed off 90 degrees into the edge sealer where it completes the “H” seal top and bottom. If you need a system that runs a straight line, we can integrate a 90-degree turntable and eliminate the shuttle.
- Case Handling Specifications:
- Length: 11” minimum to 23.5” maximum (custom sizes available)
- Width: 9.8″ minimum to 23.5″ maximum
- Height: 7.8″ minimum to 23.6″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed and Discharge Roller Tables
3” Width Taping Heads
Special Case Erectors

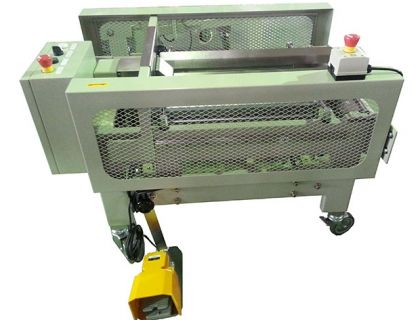

EC-812S Semi-automatic case former
EC-812S SEMI-AUTOMATIC CASE ERECTOR WITH PUSHER
Suitable for uniform-sized cases
Features Include:
- The bottom flap is automatically folded
- Easy to adjust and change over quickly for various tray sizes
- Option： Foot switch
Case Handling Specifications:
- Size Range: (L):150-500 mm (6″-20″)
(W):120-330 mm (4.7″-13″)
(H):100-500 mm (6″-20″)
- With a rodless cylinder
Palletizers

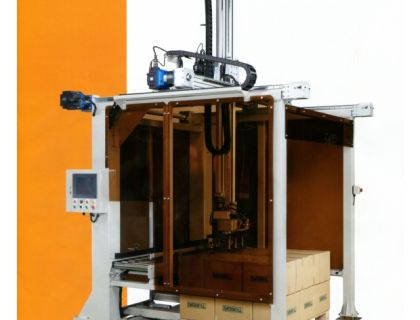

ECP-925 Auto palletizing equipment
ECP-925 Auto palletizing equipment
Features include:
- Manual adjustment, easy to adjust, and changeover is quick for various carton sizes.
- PLC controlled.
- Suitable usage products: cartons, logistics boxes.
- Pallets can be fed manually (by an operator) or supplied automatically (by a pallet dispenser/pallet separate machine).
Custom-made equipment, no standard specification.
Case Packer Machines

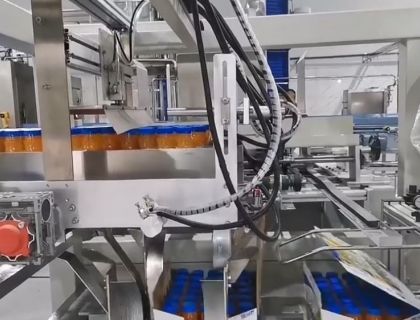

Carton Packer
Custom Made Machine

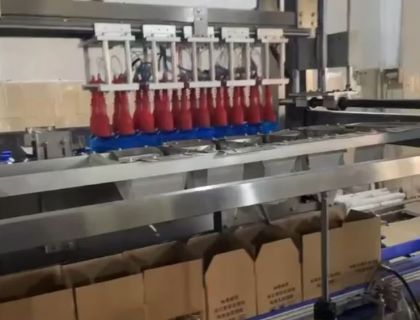

Case Packer
Custom Made Machine
Direct Inkjet Printers

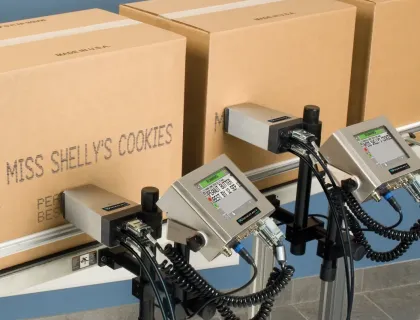

Videojet 2120 Case Coder
Large character marking (LCM) system
The Videojet 2120 is an easy-to-use printer for applying single or twin-line alphanumeric codes to a variety of products or packages. A choice of printheads and inks enables it to print on a wide range of porous and non-porous materials. The 2120 can control two printheads for opposite side case coding, and also offers multiple printer controls from one screen for more complex, multi-line coding.

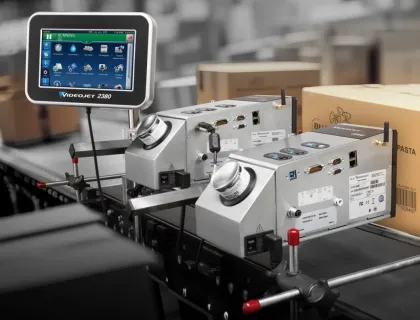

Videojet 2380 High Resolution Inkjet Printer
Large character marking (LCM) system for cases and cartons
Videojet 2380
-
- Modular and easy to integrate, with fast start-up, it delivers worry-free performance
- Designed for operation and maintenance by any user with minimal training or experience
- Patented micro-purge technology automatically performs routine printhead cleaning, helping to ensure consistent print quality with less mess or maintenance
- It prints durable, high-resolution text, logos, and bar codes, ready to meet the demands of the distribution chain
- Save on pre-printed cases and storage by using the four printhead option to print all the necessary info directly on generic cartons in-line.

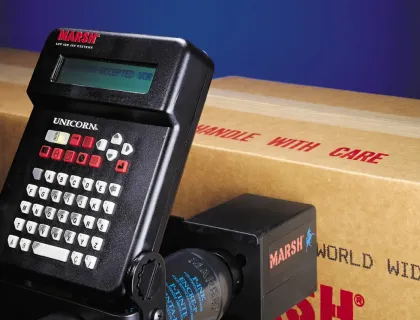

Marsh Unicorn & Unicorn II
Unicorn and Unicorn II
Large character marking (LCM) system
The Unicorn product family is a compact complete solution for single and dual line case coding. It is designed for customers who value quick set-up without technical intervention. One box contains everything needed to start printing today.
